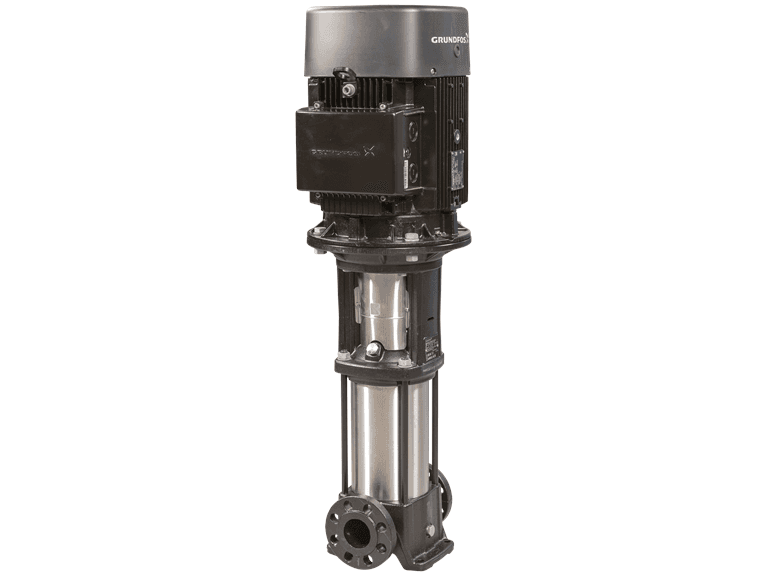

Grundfos CR5-36 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump (3x400V)
Grundfos CR5-36 A-FGJ-A-E-HQQE: vertical multistage centrifugal pump for water supply, pressure boosting and industry.
SKU: 96513394
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CR5-36 A-FGJ-A-E-HQQE is a vertical in-line multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CR5-36 A-FGJ-A-E-HQQE - Grundfos product no.: 96513394 - Power supply: 3x400V, three-phase - Rated flow: 5.8 m³/h - Rated head: 189.2 m - Max. head: 248.4 m - Number of stages: 36 - Motor power (P2): 5.5 kW - Rated current: 11 A - Rated speed: 2920-2940 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Motor protection: PTC thermistor - Max. operating pressure: 25 bar - Pipe connection: DIN / ANSI / JIS, DN 25/32, PN 25 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 304) - Shaft seal: HQQE - Net weight: 84.8 kg - Approvals: CE, EAC, UKCA, SEPRO
