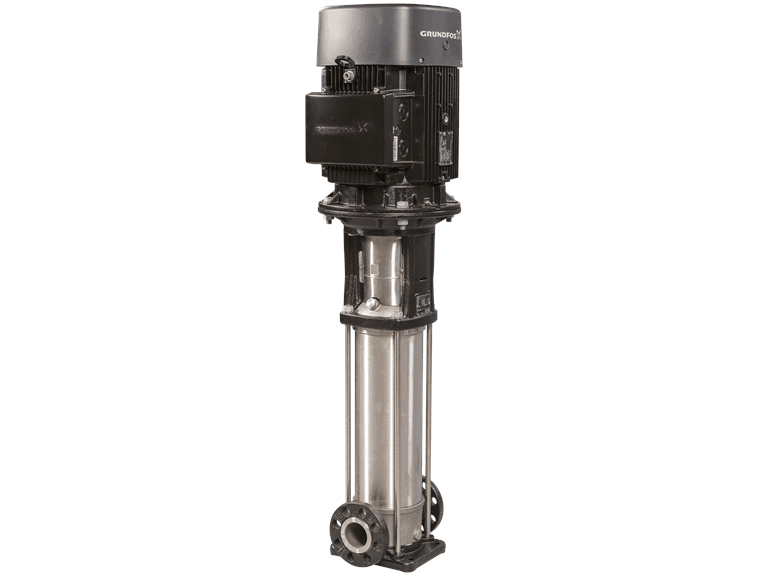

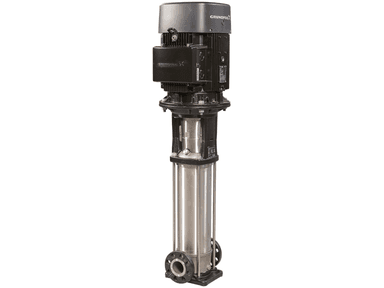

Grundfos CRN10-9 A-FGJ-A-E-HQQE Stainless Steel Vertical Multistage Pump (3x400V)
Grundfos CRN10-9 A-FGJ-A-E-HQQE: vertical multistage centrifugal pump with all wetted parts in stainless steel (AISI 316).
SKU: 96501293
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CRN10-9 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump with wetted parts in AISI 316 stainless steel for aggressive liquids and industrial applications. Technical data - Model: CRN10-9 A-FGJ-A-E-HQQE - Grundfos product no.: 96501293 - Power supply: 3x400V, three-phase - Rated flow: 10 m³/h - Rated head: 72.3 m - Max. head: 91.8 m - Number of stages: 9 - Motor power (P2): 3 kW - Rated current: 6.3 A - Rated speed: 2900-2920 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Motor protection: PTC thermistor - Max. operating pressure: 25 bar - Pipe connection: DIN / ANSI / JIS, DN 40, PN 25 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 316) - Shaft seal: HQQE - Net weight: 60 kg - Approvals: CE, EAC, UKCA, SEPRO, RCM
