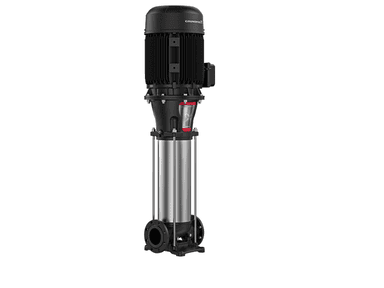

Grundfos CR95-5 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump (3x400V)
Grundfos CR95-5 A-F-A-E-HQQE: vertical multistage centrifugal pump for water supply, pressure boosting and industry.
SKU: 99141742
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CR95-5 A-F-A-E-HQQE is a vertical in-line multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CR95-5 A-F-A-E-HQQE - Grundfos product no.: 99141742 - Power supply: 3x400V, three-phase - Rated flow: 95 m³/h - Rated head: 116.7 m - Max. head: 155.3 m - Number of stages: 5 - Motor power (P2): 37 kW - Rated current: 65/37.5 A - Rated speed: 2955 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Motor protection: PTC thermistor - Max. operating pressure: 16 bar - Pipe connection: DIN, DN 100, PN 16 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 55 °C - Impeller: Stainless steel (AISI 304) - Shaft seal: HQQE - Net weight: 372 kg - Approvals: CE, EAC, UKCA, SEPRO
