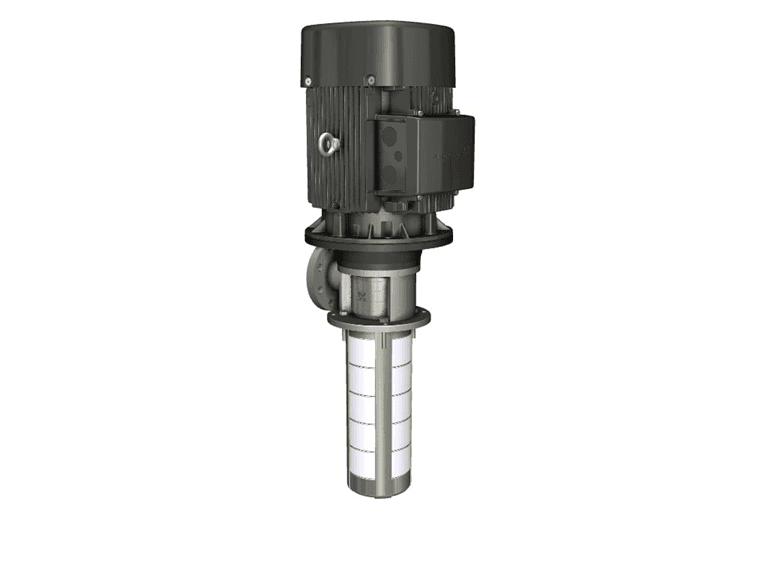

Grundfos MTR45-4/3 A-F-N-HUUV Immersible Vertical Multistage Pump (3x400V)
Grundfos MTR45-4/3 A-F-N-HUUV: vertical multistage centrifugal pump for tank mounting (coolant and process applications).
SKU: 99876628
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos MTR45-4/3 A-F-N-HUUV is a vertical multistage centrifugal pump designed to be mounted on top of tanks in machine tools and process systems. Technical data - Model: MTR45-4/3 A-F-N-HUUV - Grundfos product no.: 99876628 - Power supply: 3x400V, three-phase - Rated flow: 45 m³/h - Rated head: 59.4 m - Motor power (P2): 11 kW - Rated current: 20.8-19.8/12.0-11.8 A - Rated speed: 2940-2950 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Motor protection: PTC thermistor - Max. operating pressure: 25 bar - Pipe connection: DIN, DN 80, PN 40 - Liquid temperature: -10 – 90 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 316) - Shaft seal: HUUV - Net weight: 148 kg - Approvals: CE, EAC, UKCA
