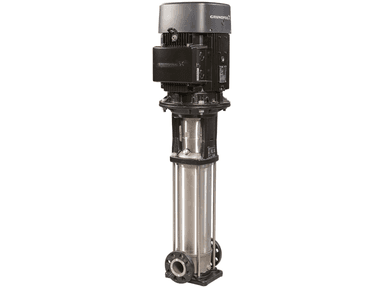

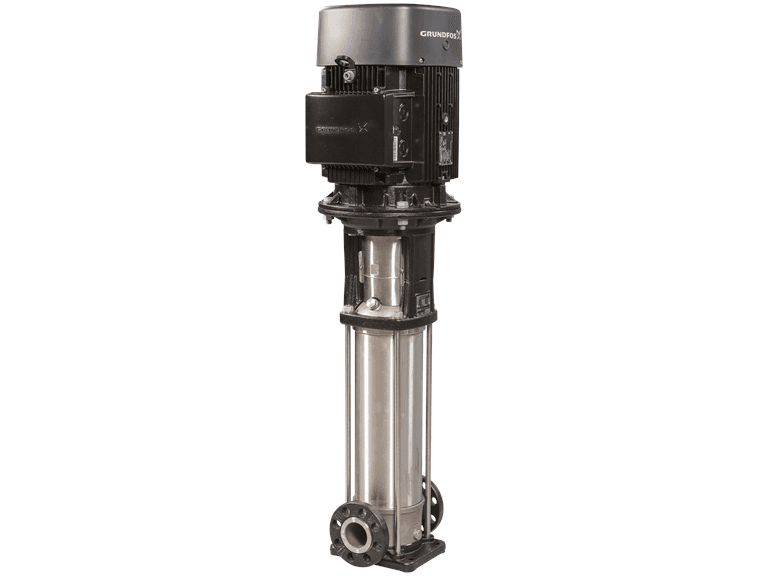

Grundfos CRN 1-36 A-FGJ-G-E-HQQE Stainless Steel Vertical Multistage Pump (3x400V)
Grundfos CRN 1-36 A-FGJ-G-E-HQQE: vertical multistage centrifugal pump with all wetted parts in stainless steel (AISI 316).
SKU: 96514117
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CRN 1-36 A-FGJ-G-E-HQQE is a vertical multistage centrifugal pump with wetted parts in AISI 316 stainless steel for aggressive liquids and industrial applications. Technical data - Model: CRN 1-36 A-FGJ-G-E-HQQE - Grundfos product no.: 96514117 - Power supply: 3x400V, three-phase - Rated flow: 1.8 m³/h - Rated head: 172.2 m - Max. head: 224.5 m - Number of stages: 36 - Motor power (P2): 2.2 kW - Rated current: 4.65 A - Rated speed: 2890-2910 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 25 bar - Pipe connection: DIN / ANSI / JIS, DN 25/32, PN 25 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 316) - Shaft seal: HQQE - Net weight: 48.7 kg - Approvals: CE, EAC, UKCA, SEPRO, RCM
