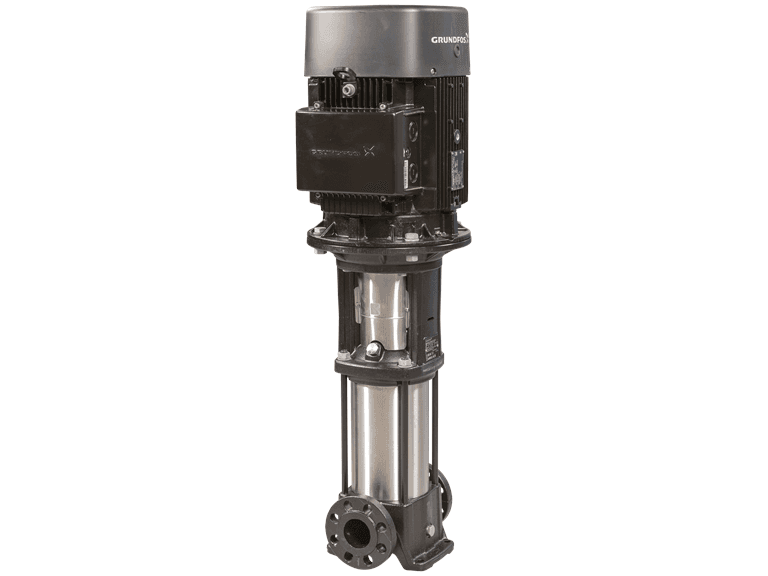

Grundfos CR5-6 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump (3x230/400V)
Grundfos CR5-6 A-FGJ-A-E-HQQE: vertical multistage centrifugal pump for water supply, pressure boosting and industry.
SKU: 96517041
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CR5-6 A-FGJ-A-E-HQQE is a vertical in-line multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CR5-6 A-FGJ-A-E-HQQE - Grundfos product no.: 96517041 - Power supply: 3x230/400V, three-phase - Rated flow: 5.8 m³/h - Rated head: 30.6 m - Max. head: 42.4 m - Number of stages: 6 - Motor power (P2): 1.1 kW - Rated current: 4.35/2.50 A - Rated speed: 2840-2870 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 25 bar - Pipe connection: DIN / ANSI / JIS, DN 25/32, PN 25 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 304) - Shaft seal: HQQE - Net weight: 29.8 kg - Approvals: CE, EAC, UKCA, SEPRO, RCM
