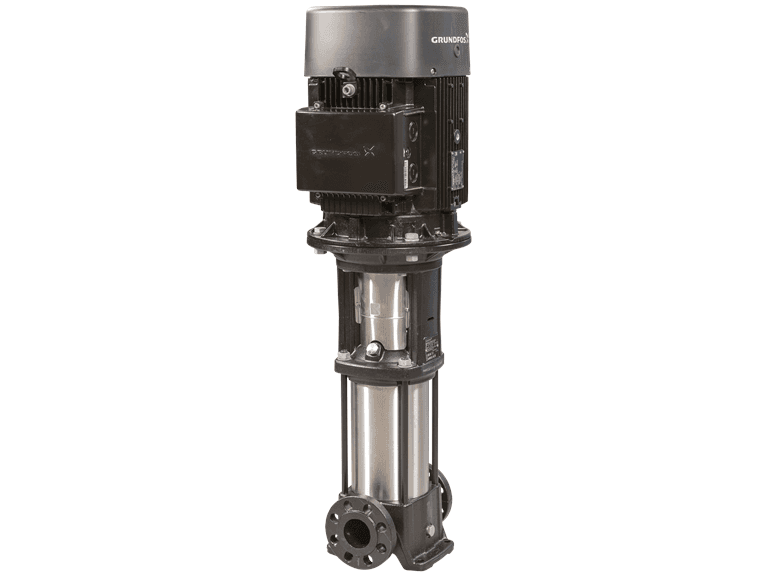

Grundfos CR15-09 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump (3x400V)
Grundfos CR15-09 A-F-A-E-HQQE: vertical multistage centrifugal pump for water supply, pressure boosting and industry.
SKU: 96501900
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CR15-09 A-F-A-E-HQQE is a vertical in-line multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CR15-09 A-F-A-E-HQQE - Grundfos product no.: 96501900 - Power supply: 3x400V, three-phase - Rated flow: 17 m³/h - Rated head: 100.6 m - Max. head: 127 m - Number of stages: 9 - Motor power (P2): 7.5 kW - Rated current: 14.4-14.0/8.30-8.10 A - Rated speed: 2910-2920 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Motor protection: PTC thermistor - Max. operating pressure: 16 bar - Pipe connection: DIN, DN 50, PN 25 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 304) - Shaft seal: HQQE - Net weight: 107 kg - Approvals: CE, EAC, UKCA, SEPRO
