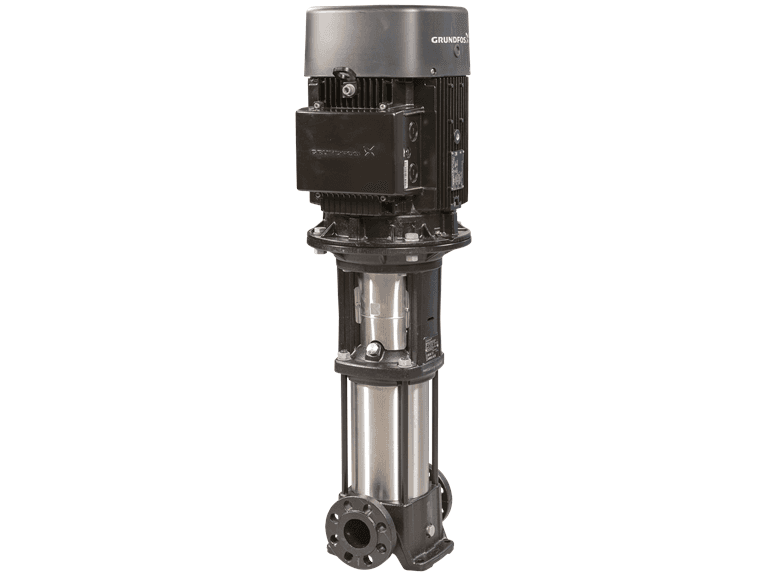

Grundfos CR1-21 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump (3x230/400V)
Grundfos CR1-21 A-FGJ-A-E-HQQE: vertical multistage centrifugal pump for water supply, pressure boosting and industry.
SKU: 96516253
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CR1-21 A-FGJ-A-E-HQQE is a vertical in-line multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CR1-21 A-FGJ-A-E-HQQE - Grundfos product no.: 96516253 - Power supply: 3x230/400V, three-phase - Rated flow: 1.8 m³/h - Rated head: 96.6 m - Max. head: 129.2 m - Number of stages: 21 - Motor power (P2): 1.1 kW - Rated current: 4.35/2.50 A - Rated speed: 2840-2870 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 25 bar - Pipe connection: DIN / ANSI / JIS, DN 25/32, PN 25 - Liquid temperature: -20 – 120 °C - Max. ambient temperature: 60 °C - Impeller: Stainless steel (AISI 304) - Shaft seal: HQQE - Net weight: 34.9 kg - Approvals: CE, EAC, UKCA, SEPRO, RCM
