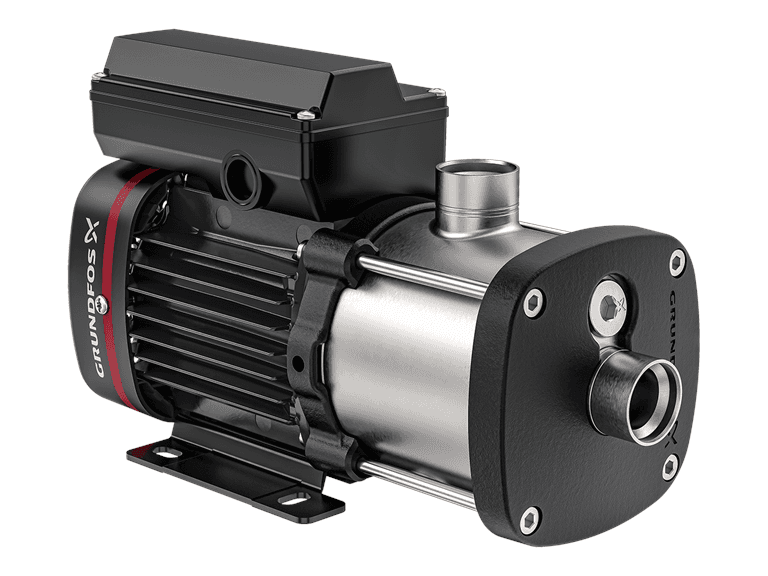

Grundfos CM3-7 A-R-I-E-AQQE C1-A-A-N Horizontal Multistage Centrifugal Pump (Monofaze)
Grundfos CM3-7 A-R-I-E-AQQE C1-A-A-N: compact horizontal multistage centrifugal pump for water supply and pressure boosting.
SKU: 92889534
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CM3-7 A-R-I-E-AQQE C1-A-A-N is a compact horizontal multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CM3-7 A-R-I-E-AQQE C1-A-A-N - Grundfos product no.: 92889534 - Power supply: 1x220-230V, single-phase - Rated flow: 3.1 m³/h - Rated head: 48.59 m - Motor power (P2): 0.9 kW - Rated current: 5.72-5.60 A - Rated speed: 2790-2810 rpm - Efficiency class: IE2 - Enclosure class: IP55 - Insulation class: F - Motor protection: Thermal switch (PTO) - Max. operating pressure: 16 bar - Pipe connection: Rp 1" - Liquid temperature: -20 – 120 °C - Ambient temperature: -20 – 55 °C - Pump housing: Stainless steel (AISI 304) - Impeller: Stainless steel (AISI 304) - Shaft seal: AQQE - Net weight: 16.2 kg - Approvals: CE, EAC, UKCA
