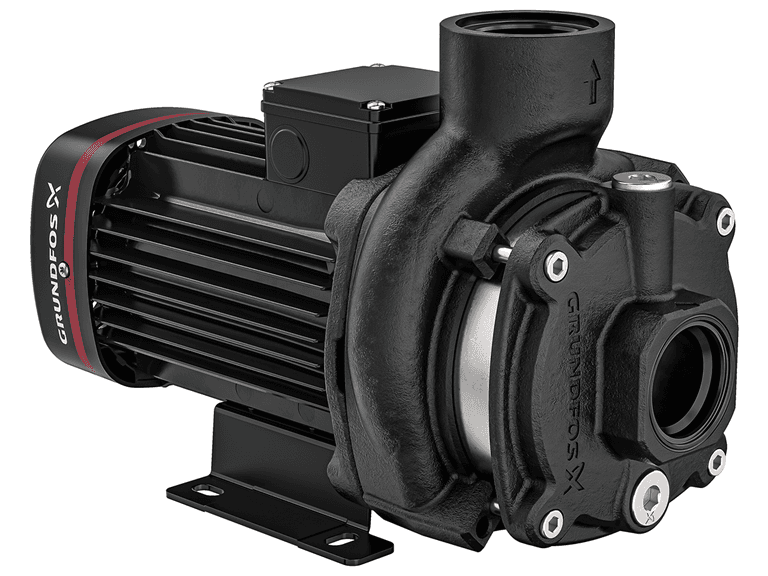

Grundfos CM3-6 A-R-A-E-AQQE F-A-A-N Horizontal Multistage Centrifugal Pump (Trifaze)
Grundfos CM3-6 A-R-A-E-AQQE F-A-A-N: compact horizontal multistage centrifugal pump for water supply and pressure boosting.
SKU: 96807027
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CM3-6 A-R-A-E-AQQE F-A-A-N is a compact horizontal multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CM3-6 A-R-A-E-AQQE F-A-A-N - Grundfos product no.: 96807027 - Power supply: 3x230/400V, three-phase - Rated flow: 3.1 m³/h - Rated head: 41.81 m - Motor power (P2): 0.65 kW - Rated current: 2.75-2.93/1.59-1.69 A - Rated speed: 2820-2850 rpm - Efficiency class: IE2 - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: Rp 1" - Liquid temperature: -20 – 90 °C - Ambient temperature: -20 – 55 °C - Pump housing: Cast iron - Impeller: Stainless steel (AISI 304) - Shaft seal: AQQE - Net weight: 12.8 kg - Approvals: CE, EAC, UKCA
