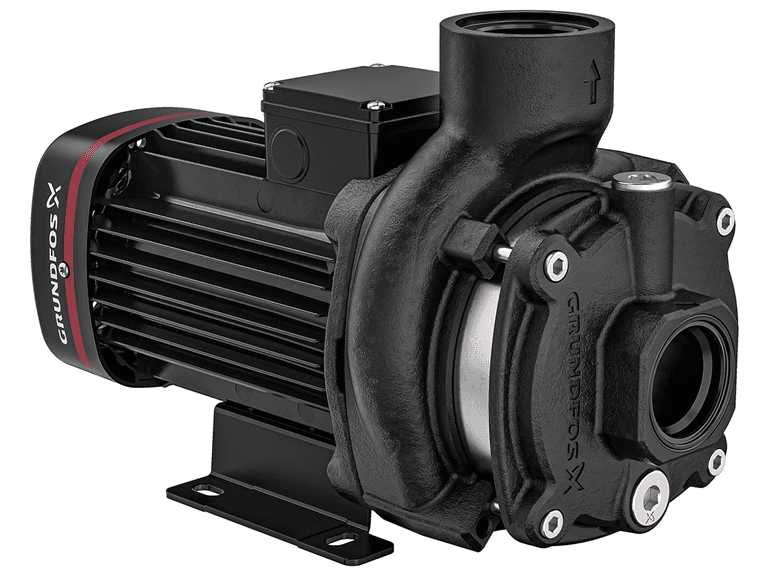

Grundfos CM25-4 A-R-A-E-AQQE F-A-A-N Horizontal Multistage Centrifugal Pump (Trifaze)
Grundfos CM25-4 A-R-A-E-AQQE F-A-A-N: compact horizontal multistage centrifugal pump for water supply and pressure boosting.
SKU: 99205259
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CM25-4 A-R-A-E-AQQE F-A-A-N is a compact horizontal multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CM25-4 A-R-A-E-AQQE F-A-A-N - Grundfos product no.: 99205259 - Power supply: 3x230/400V, three-phase - Rated flow: 22 m³/h - Rated head: 65.49 m - Motor power (P2): 7.5 kW - Rated current: 25.0-24.2/14.4-14.0 A - Rated speed: 2910-2920 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: Rp 2" - Liquid temperature: -20 – 90 °C - Ambient temperature: -20 – 55 °C - Pump housing: Cast iron - Impeller: Stainless steel (AISI 304) - Shaft seal: AQQE - Net weight: 54.8 kg - Approvals: CE, EAC, UKCA
