Images are for illustration only; packaging, colour and accessories may vary. The product delivered is the original part identified by its product code (SKU).

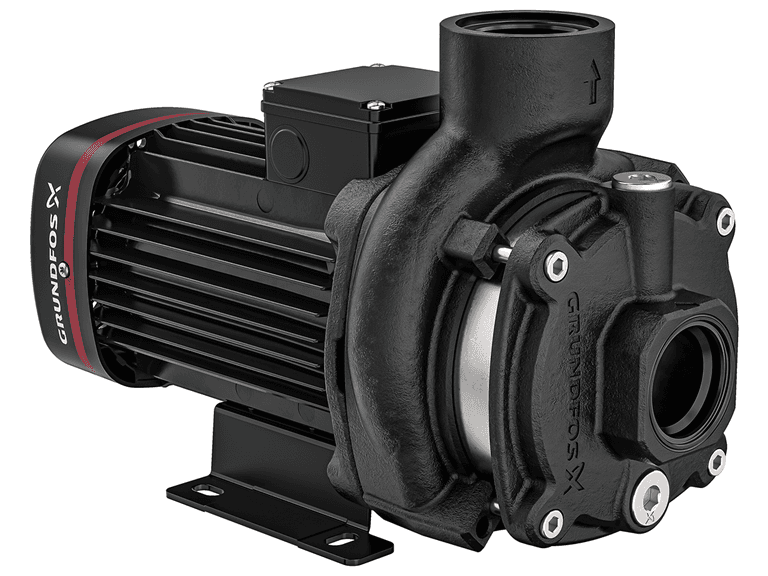

Grundfos CM25-2 A-R-A-E-AQQE F-A-A-N Horizontal Multistage Centrifugal Pump (Trifaze)
Grundfos CM25-2 A-R-A-E-AQQE F-A-A-N: compact horizontal multistage centrifugal pump for water supply and pressure boosting.
SKU: 98979368
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CM25-2 A-R-A-E-AQQE F-A-A-N is a compact horizontal multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CM25-2 A-R-A-E-AQQE F-A-A-N - Grundfos product no.: 98979368 - Power supply: 3x230/400V, three-phase - Rated flow: 22 m³/h - Rated head: 32.62 m - Motor power (P2): 4 kW - Rated current: 13.8-13.2/8.00-7.65 A - Rated speed: 2920-2940 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Motor protection: PTC thermistor - Max. operating pressure: 10 bar - Pipe connection: Rp 2" - Liquid temperature: -20 – 90 °C - Ambient temperature: -20 – 55 °C - Pump housing: Cast iron - Impeller: Stainless steel (AISI 304) - Shaft seal: AQQE - Net weight: 47.5 kg - Approvals: CE, EAC, UKCA
