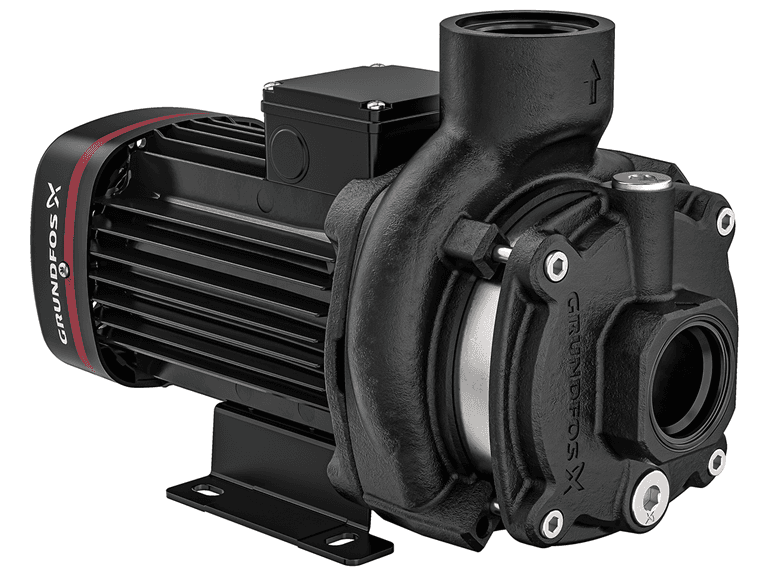

Grundfos CM10-2 A-R-A-E-AQQE F-A-A-N Horizontal Multistage Centrifugal Pump (Trifaze)
Grundfos CM10-2 A-R-A-E-AQQE F-A-A-N: compact horizontal multistage centrifugal pump for water supply and pressure boosting.
SKU: 98771564
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CM10-2 A-R-A-E-AQQE F-A-A-N is a compact horizontal multistage centrifugal pump for water supply, pressure boosting, irrigation and industrial applications. Technical data - Model: CM10-2 A-R-A-E-AQQE F-A-A-N - Grundfos product no.: 98771564 - Power supply: 3x230/400V, three-phase - Rated flow: 10 m³/h - Rated head: 27.09 m - Number of stages: 2 - Motor power (P2): 1.5 kW - Rated current: 5.70/3.30 A - Rated speed: 2890-2910 rpm - Efficiency class: IE3 - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: Rp 1 1/2" - Liquid temperature: -20 – 90 °C - Ambient temperature: -20 – 55 °C - Pump housing: Cast iron - Impeller: Stainless steel (AISI 304) - Shaft seal: AQQE - Net weight: 30.5 kg - Approvals: CE, EAC, UKCA
