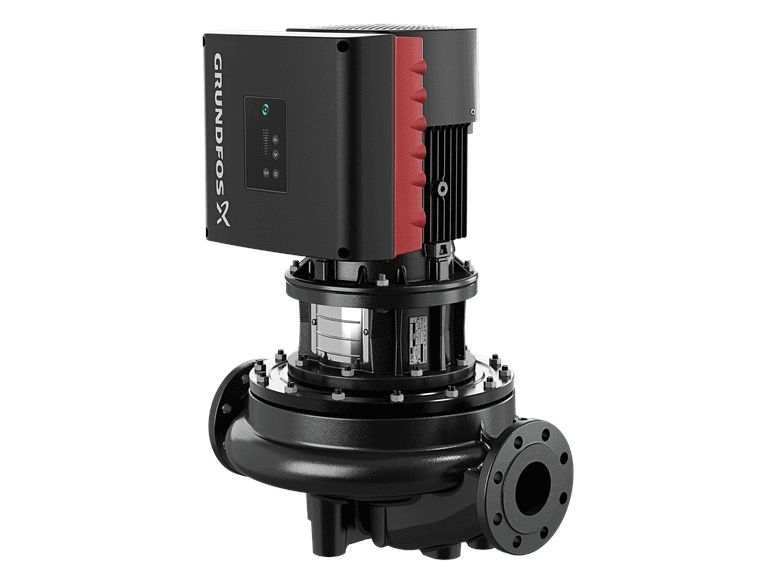

Grundfos TPE 125-130/4 A-F-A-BQQE-LWA Variable Speed In-line Pump
Grundfos TPE 125-130/4 A-F-A-BQQE-LWA: single-stage, variable speed in-line centrifugal pump for HVAC and industrial systems.
SKU: 99113709
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos TPE 125-130/4 A-F-A-BQQE-LWA is a single-stage in-line centrifugal pump with integrated frequency converter for heating, cooling and industrial circulation applications. Technical data - Model: TPE 125-130/4 A-F-A-BQQE-LWA - Grundfos product no.: 99113709 - Power supply: 3x380-500V, three-phase - Rated flow: 140.4 m³/h - Rated head: 10.45 m - Max. head: 13 m - Motor power (P2): 5.5 kW - Rated current: 10.5-8.40 A - Rated speed: 180-2200 rpm - Efficiency class: IE5 - Enclosure class: IP55 - Insulation class: F - Motor protection: Electronic - Max. operating pressure: 16 bar - Pipe connection: DIN, DN 125, PN 16 - Port-to-port length: 620 mm - Liquid temperature: -25 – 120 °C - Ambient temperature: -20 – 50 °C - Pump housing: Cast iron - Impeller: Cast iron - Shaft seal: BQQE - Net weight: 177 kg
