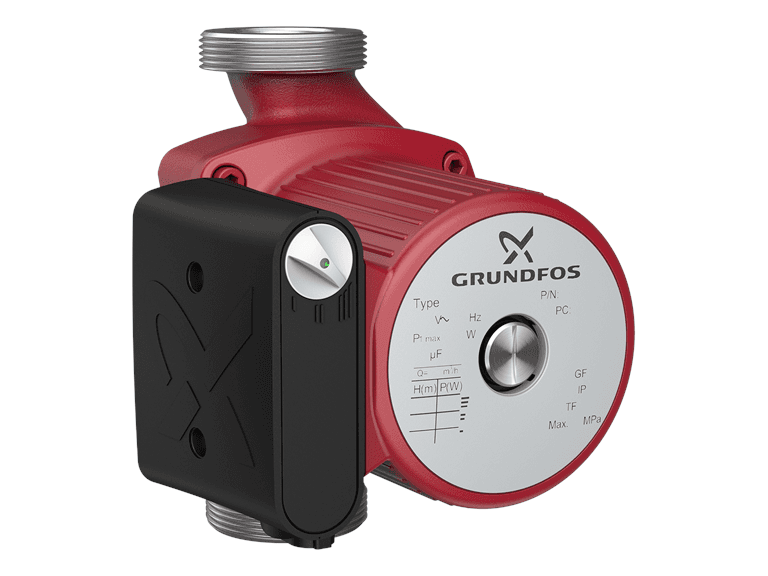

Grundfos UPS32-100 N 180 Circulator Pump (1x230V)
Grundfos UPS32-100 N 180: wet-rotor, multi-speed circulator pump for heating and domestic water circuits.
SKU: 95906489
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description

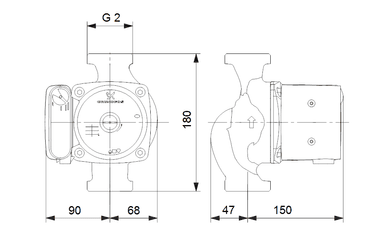

Grundfos UPS32-100 N 180 is a wet-rotor circulator pump with selectable speeds for residential and light commercial heating systems. 'N' in the model name indicates a stainless steel pump housing. Technical data - Model: UPS32-100 N 180 - Grundfos product no.: 95906489 - Power supply: 1x230V, single-phase - Rated flow: 7.45 m³/h - Rated head: 6.69 m - Max. head: 10 m - Max. power input (P1): 345 W - Enclosure class: IPX4D - Insulation class: H - Motor protection: Thermal switch - Max. operating pressure: 10 bar - Pipe connection: G 2" - Port-to-port length: 180 mm - Liquid temperature: -25 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Stainless steel (AISI 304) - Impeller: Composite - Net weight: 6.65 kg - Approvals: CE, EAC, WEEE, RCM
