Grundfos UPS25-60 N 180 Circulator Pump (1x230V)
Grundfos UPS25-60 N 180: wet-rotor, multi-speed circulator pump for heating and domestic water circuits.
SKU: 96913085
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description

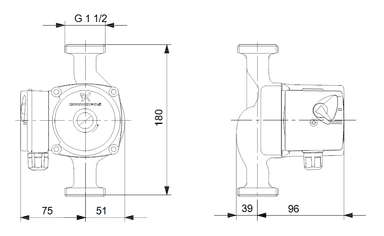

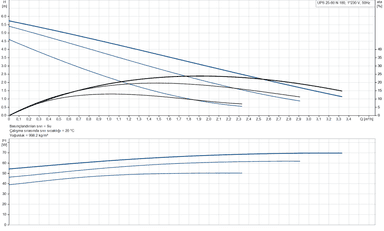

Grundfos UPS25-60 N 180 is a wet-rotor circulator pump with selectable speeds for residential and light commercial heating systems. 'N' in the model name indicates a stainless steel pump housing. Technical data - Model: UPS25-60 N 180 - Grundfos product no.: 96913085 - Power supply: 1x230V, single-phase - Rated flow: 1.91 m³/h - Rated head: 3.1 m - Max. head: 6 m - Max. power input (P1): 60 W - Enclosure class: IP44 - Insulation class: F - Motor protection: Impedance protected - Max. operating pressure: 10 bar - Pipe connection: G 1 1/2" - Port-to-port length: 180 mm - Liquid temperature: 2 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Stainless steel - Impeller: Composite - Net weight: 2.86 kg - Approvals: CE, VDE, EAC, WEEE, RCM
