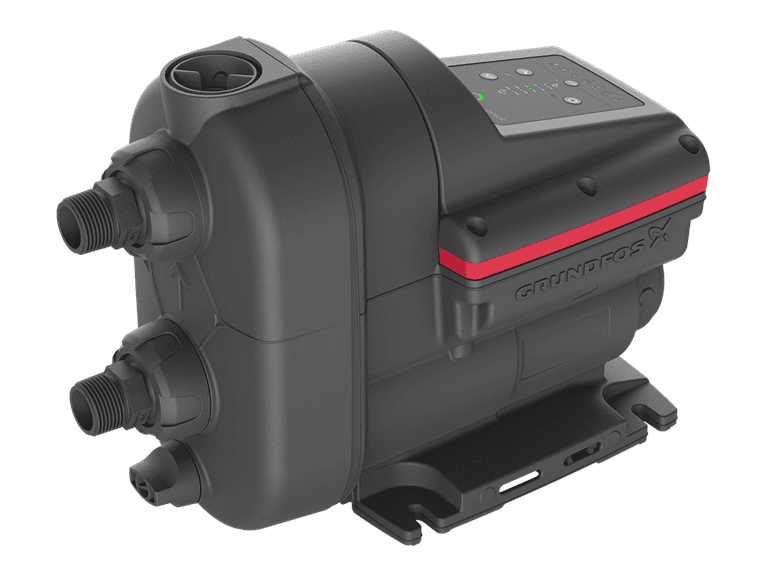

Grundfos SCALA2 3-45 Compact Booster Pump (1x200-240V)
Grundfos SCALA2 3-45: compact, self-priming booster pump for homes and villas.
SKU: 93013354
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos SCALA2 3-45 combines pump, motor and controller in one compact unit for pressure boosting in homes and villas. Technical data - Model: SCALA2 3-45 - Grundfos product no.: 93013354 - Power supply: 1x200-240V, single-phase - Rated flow: 3 m³/h - Max. flow: 4.6 m³/h - Rated head: 27 m - Max. head: 45 m - Motor power (P2): 0.45 kW - Power input (P1): 550 W - Max. current: 2.8 A - Max. speed: 5200 rpm - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 10 bar - Max. inlet pressure: 6 bar - Pipe connection: R 1" - Cable length: 1.5 m - Liquid temperature: 0 – 45 °C - Ambient temperature: 0 – 55 °C - Pump housing: Composite - Impeller: Composite - Net weight: 9.75 kg - Approvals: CE, VDE
