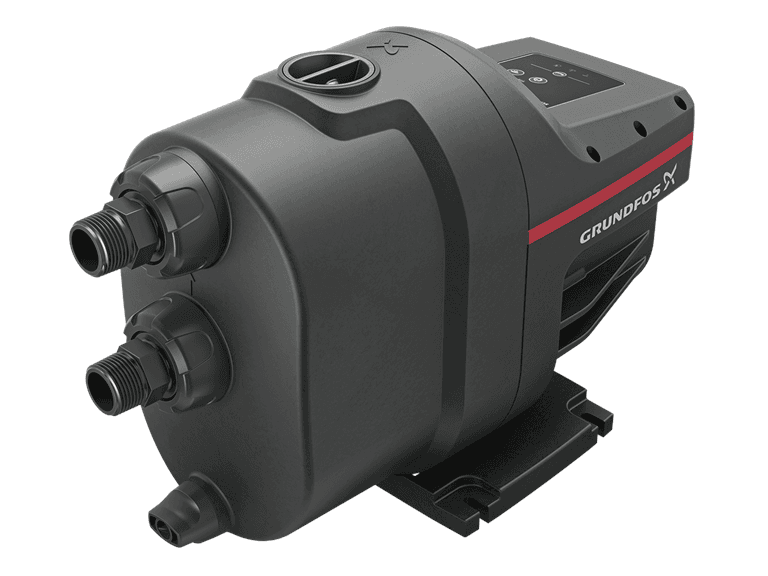

Grundfos SCALA1 5-55 Compact Booster Pump (1x230V)
Grundfos SCALA1 5-55: compact, self-priming booster pump for homes and villas.
SKU: 99530407
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos SCALA1 5-55 combines pump, motor and controller in one compact unit for pressure boosting in homes and villas. Technical data - Model: SCALA1 5-55 - Grundfos product no.: 99530407 - Power supply: 1x230V, single-phase - Rated flow: 5 m³/h - Rated head: 27.8 m - Max. head: 55 m - Motor power (P2): 0.78 kW - Rated current: 5.3 A - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 8 bar - Max. inlet pressure: 2 bar - Pipe connection: R 1" - Cable length: 1.5 m - Liquid temperature: 0 – 45 °C - Ambient temperature: 0 – 55 °C - Pump housing: Composite - Impeller: Composite - Net weight: 14 kg - Approvals: CE, MORO, SEPRO, AAA
