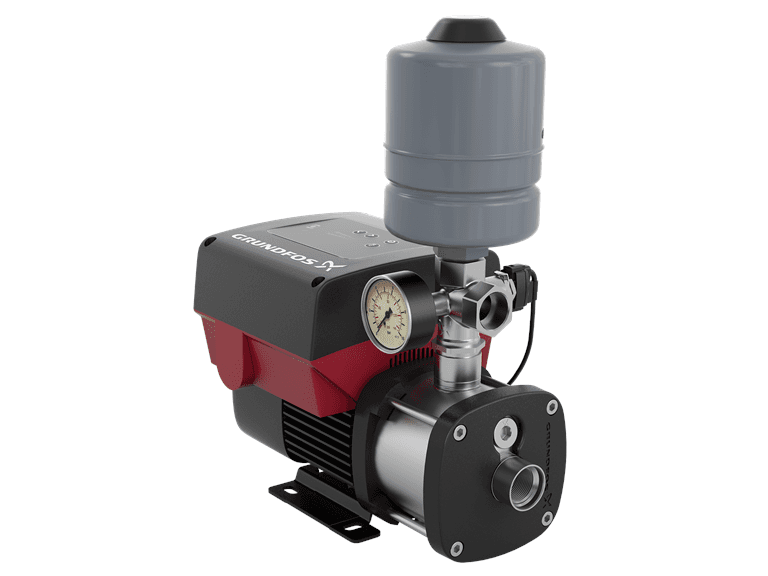

Grundfos CMBE3-62 I-U-C-C-D-A Variable Speed Booster Set (1x200-240V)
Grundfos CMBE3-62 I-U-C-C-D-A: variable speed compact booster set providing constant pressure.
SKU: 98374701
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CMBE3-62 I-U-C-C-D-A combines pump, frequency converter, pressure sensor and tank in one unit, providing constant pressure at the taps. Technical data - Model: CMBE3-62 I-U-C-C-D-A - Grundfos product no.: 98374701 - Power supply: 1x200-240V, single-phase - Rated flow: 4.2 m³/h - Rated head: 45.2 m - Number of stages: 4 - Motor power (P2): 1.1 kW - Max. current: 6.70-5.60 A - Rated speed: 360-4000 rpm - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: Rp 1 - Cable length: 1.5 m - Liquid temperature: 0 – 60 °C - Max. ambient temperature: 55 °C - Pump housing: Stainless steel (AISI 304) - Impeller: Stainless steel (AISI 304) - Shaft seal: AVBE - Net weight: 17.1 kg - Approvals: CE, EAC, CN ROHS EXE, MORO, SEPRO
