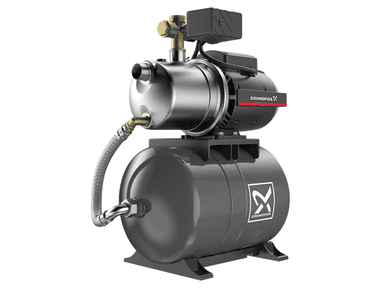

Grundfos JP 3-42 PT-H Jet Pump Booster Set (1x230V)
Grundfos JP 3-42 PT-H: booster set with self-priming JP jet pump and pressure tank.
SKU: 99463874
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos JP 3-42 PT-H is a booster set consisting of a self-priming JP jet pump, pressure tank and pressure switch for water supply from wells or tanks. Technical data - Model: JP 3-42 PT-H - Grundfos product no.: 99463874 - Power supply: 1x230V, single-phase - Rated flow: 3 m³/h - Rated head: 36.5 m - Motor power (P2): 0.55 kW - Power input (P1): 700 W - Rated current: 3.2 A - Rated speed: 2850 rpm - Enclosure class: IP44 - Insulation class: F - Max. operating pressure: PN 6 bar - Pipe connection: G 1" - Cable length: 1.5 m - Liquid temperature: 0 – 40 °C - Ambient temperature: 0 – 40 °C - Pump housing: Stainless steel (AISI 304) - Impeller: Composite - Shaft seal: BBVP - Net weight: 15 kg - Approvals: CE, EAC, UKCA
