Grundfos CMBE TWIN 3-93 Twin Variable Speed Booster Set (1x230V)

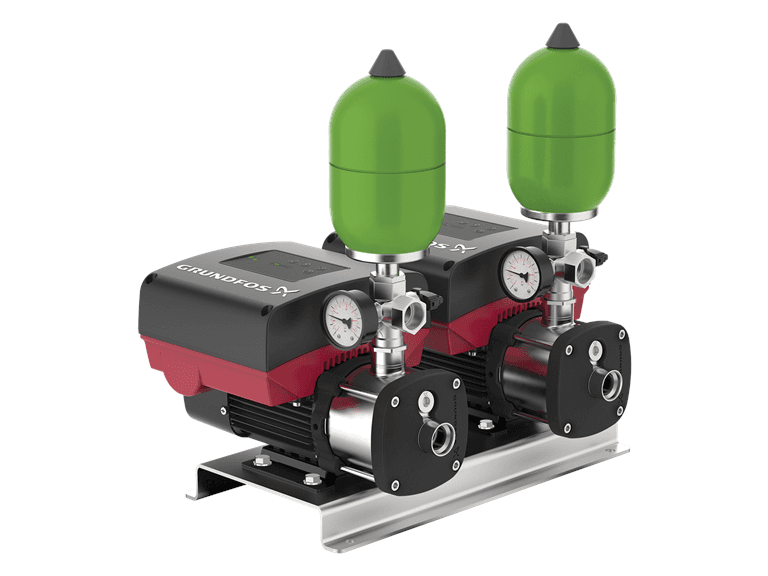

Grundfos CMBE TWIN 3-93: two-pump, variable speed constant-pressure compact booster set.
SKU: 99219421
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos CMBE TWIN 3-93 is a compact booster set with two variable speed pumps providing constant pressure for residential and small commercial buildings. Technical data - Model: CMBE TWIN 3-93 - Grundfos product no.: 99219421 - Power supply: 1x230V, single-phase - Rated flow: 4.2 m³/h - Rated head: 66.3 m - Number of stages: 6 - Motor power (P2): 1.5 kW - Power input (P1): 3.432 kW - Max. current: 9.10-7.60 A - Enclosure class: IP55 - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: Rp 1 - Cable length: 1.5 m - Liquid temperature: 0 – 60 °C - Max. ambient temperature: 55 °C - Pump housing: Stainless steel (AISI 304) - Impeller: Stainless steel (AISI 304) - Shaft seal: AVBE - Net weight: 43.1 kg - Approvals: CE, EAC, CN ROHS EX, SEPRO, MORO
