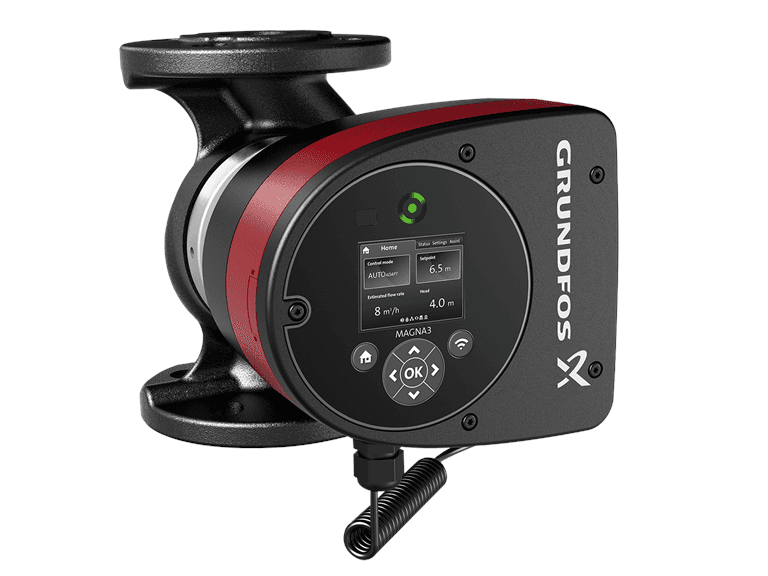

Grundfos MAGNA3 32-100 F 220 Variable Speed Circulator Pump (1x230V)
Grundfos MAGNA3 32-100 F 220: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 97924258
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos MAGNA3 32-100 F 220 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: MAGNA3 32-100 F 220 - Grundfos product no.: 97924258 - Power supply: 1x230V, single-phase - Rated flow: 5.65 m³/h - Rated head: 6.777 m - Max. head: 10 m - Power input (P1): 9 W – 171 W - Rated current: 0.09–1.47 A - Max. speed: 4530 rpm - Energy efficiency index (EEI): 0.18 - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: DIN, DN 32, PN 6/10 - Port-to-port length: 220 mm - Liquid temperature: -10 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 7.63 kg - Approvals: CE, VDE, EAC, MOROCCO, UKCA, RCM, UkrSEPRO
