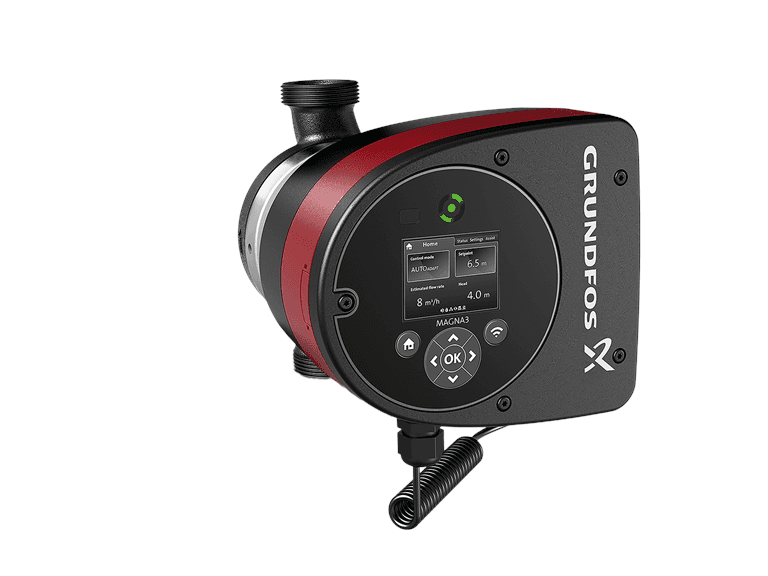

Grundfos MAGNA3 25-120 180 Variable Speed Circulator Pump (1x230V)
Grundfos MAGNA3 25-120 180: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 97924248
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos MAGNA3 25-120 180 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: MAGNA3 25-120 180 - Grundfos product no.: 97924248 - Power supply: 1x230V, single-phase - Rated flow: 5.56 m³/h - Rated head: 7.469 m - Max. head: 12 m - Power input (P1): 9 W – 185 W - Rated current: 0.09–1.56 A - Max. speed: 4980 rpm - Energy efficiency index (EEI): 0.18 - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: G 1 1/2" - Port-to-port length: 180 mm - Liquid temperature: -10 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 5.11 kg - Approvals: CE, VDE, EAC, MOROCCO, UKCA, RCM, UkrSEPRO
