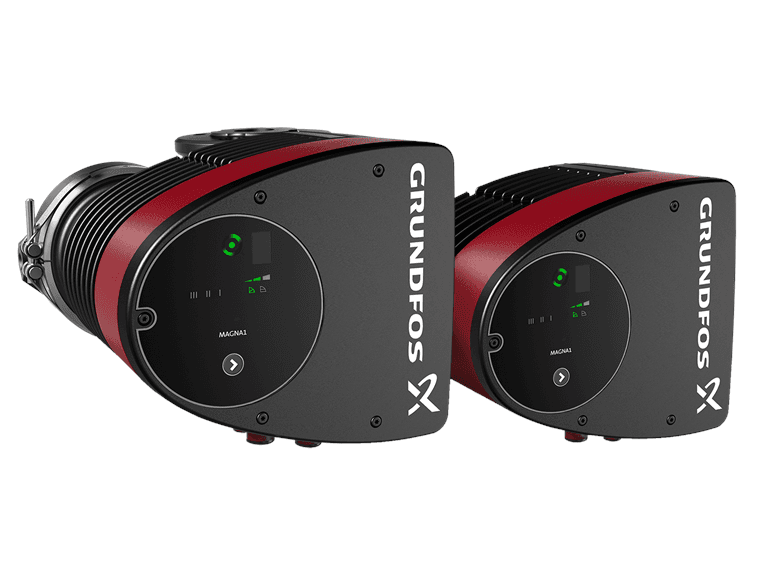

Grundfos MAGNA1 D 40-120 F 250 Twin-Head Variable Speed Circulator Pump (1x230V)
Grundfos MAGNA1 D 40-120 F 250: twin-head, variable speed MAGNA circulator pump for commercial heating and cooling systems.
SKU: 99221310
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos MAGNA1 D 40-120 F 250 is a twin-head (suitable for duty/standby operation), variable speed, high-efficiency circulator pump for heating, cooling and air-conditioning systems in commercial buildings. Technical data - Model: MAGNA1 D 40-120 F 250 - Grundfos product no.: 99221310 - Power supply: 1x230V, single-phase - Max. head: 12 m - Power input (P1): 17.03 W – 476 W - Rated current: 0.19–2.1 A - Max. speed: 4034 rpm - Energy efficiency index (EEI): 0.22 - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: DIN, DN 40, PN 6/10 - Port-to-port length: 250 mm - Liquid temperature: -10 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 31.6 kg - Approvals: CE, VDE, EAC, MOROCCO, UKCA, RCM, UkrSEPRO
