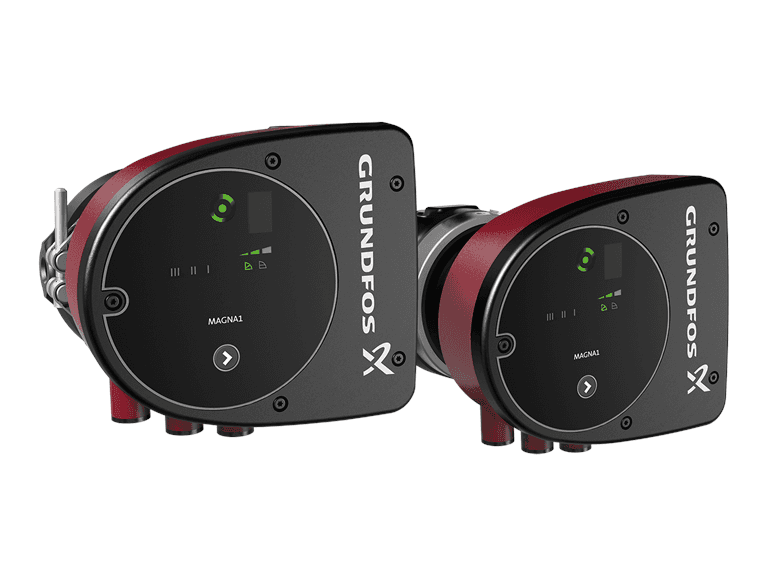

Grundfos MAGNA1 D 32-80 180 Twin-Head Variable Speed Circulator Pump (1x230V)
Grundfos MAGNA1 D 32-80 180: twin-head, variable speed MAGNA circulator pump for commercial heating and cooling systems.
SKU: 99221240
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos MAGNA1 D 32-80 180 is a twin-head (suitable for duty/standby operation), variable speed, high-efficiency circulator pump for heating, cooling and air-conditioning systems in commercial buildings. Technical data - Model: MAGNA1 D 32-80 180 - Grundfos product no.: 99221240 - Power supply: 1x230V, single-phase - Max. head: 8 m - Power input (P1): 9 W – 151 W - Rated current: 0.09–1.22 A - Max. speed: 4041 rpm - Energy efficiency index (EEI): 0.23 - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: G 2" - Port-to-port length: 180 mm - Liquid temperature: -10 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 11.1 kg - Approvals: CE, VDE, EAC, MOROCCO, UKCA, RCM, UkrSEPRO
