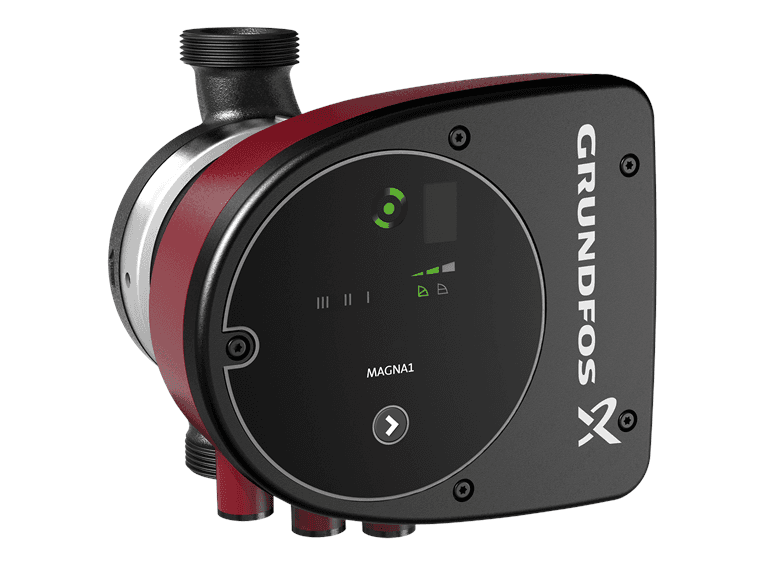

Grundfos MAGNA1 32-120 180 Variable Speed Circulator Pump (1x230V)
Grundfos MAGNA1 32-120 180: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 99221281
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos MAGNA1 32-120 180 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: MAGNA1 32-120 180 - Grundfos product no.: 99221281 - Power supply: 1x230V, single-phase - Max. head: 12 m - Power input (P1): 8 W – 188 W - Rated current: 0.08–1.51 A - Max. speed: 4953 rpm - Energy efficiency index (EEI): 0.20 - Enclosure class: IPX4D - Insulation class: F - Max. operating pressure: 10 bar - Pipe connection: G 2" - Port-to-port length: 180 mm - Liquid temperature: -10 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 4.63 kg - Approvals: CE, VDE, EAC, MOROCCO, UKCA, RCM, UkrSEPRO
