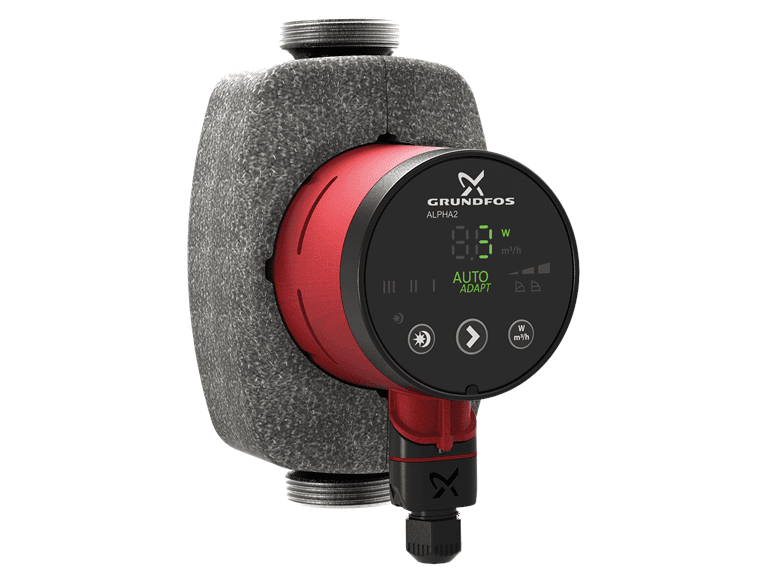

Grundfos ALPHA2 25-40 N 180 Variable Speed Circulator Pump (1x230V)
Grundfos ALPHA2 25-40 N 180: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 99411365
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos ALPHA2 25-40 N 180 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: ALPHA2 25-40 N 180 - Grundfos product no.: 99411365 - Power supply: 1x230V, single-phase - Rated flow: 1.5 m³/h - Rated head: 2.01 m - Max. head: 4 m - Power input (P1): 18 W - Energy efficiency index (EEI): 0.15 - Enclosure class: IPX4D - Insulation class: F - Motor protection: Electronic - Max. operating pressure: 10 bar - Pipe connection: G 1 1/2" - Port-to-port length: 180 mm - Liquid temperature: 2 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Stainless steel - Impeller: Composite - Net weight: 2.21 kg - Approvals: VDE, CE, EAC, SEPRO
