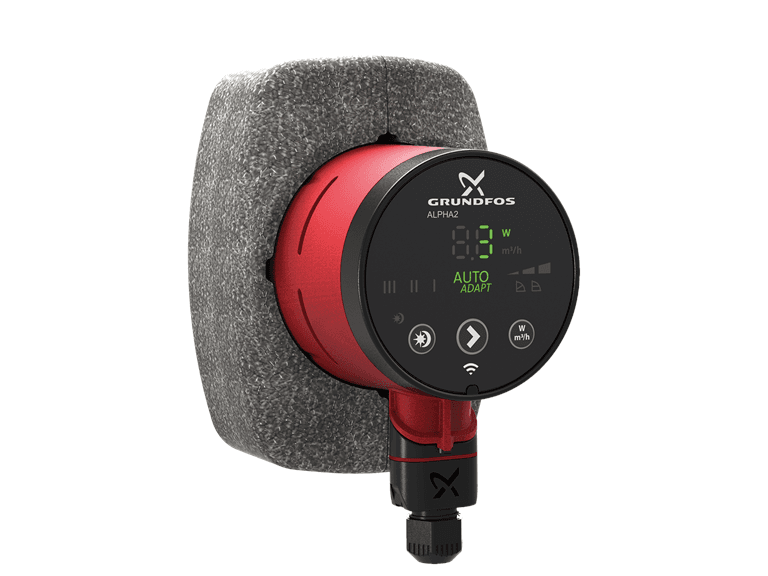

Grundfos ALPHA2 20-60 N 150 Variable Speed Circulator Pump (1x230V)
Grundfos ALPHA2 20-60 N 150: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 92505511
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos ALPHA2 20-60 N 150 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: ALPHA2 20-60 N 150 - Grundfos product no.: 92505511 - Power supply: 1x230V, single-phase - Rated flow: 1.94 m³/h - Rated head: 3.28 m - Max. head: 6 m - Power input (P1): 34 W - Energy efficiency index (EEI): 0.17 - Enclosure class: IPX4D - Insulation class: F - Motor protection: Electronic - Max. operating pressure: 10 bar - Pipe connection: G 1 1/4" - Port-to-port length: 150 mm - Liquid temperature: 2 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Stainless steel - Impeller: Composite - Net weight: 1.99 kg - Approvals: VDE, CE, EAC, SEPRO
