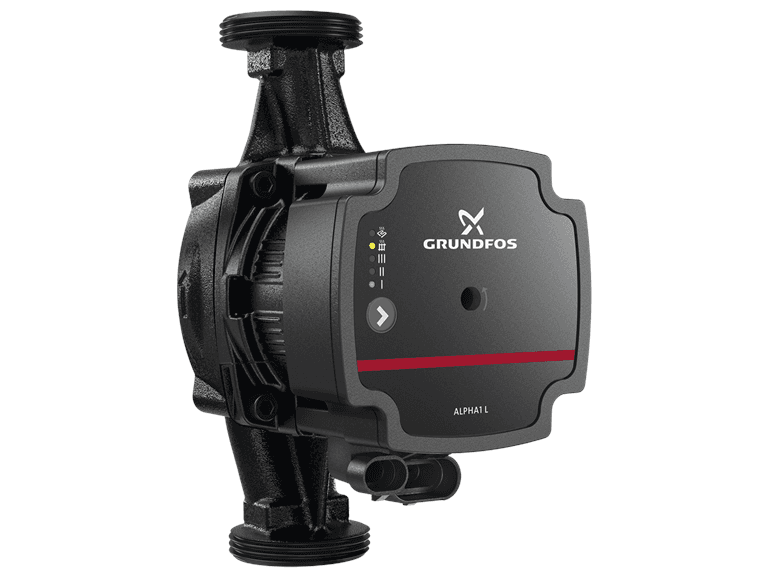

Grundfos ALPHA1 L 25-60 180 Variable Speed Circulator Pump (1x230V)
Grundfos ALPHA1 L 25-60 180: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 99160584
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos ALPHA1 L 25-60 180 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: ALPHA1 L 25-60 180 - Grundfos product no.: 99160584 - Power supply: 1x230V, single-phase - Rated flow: 1.94 m³/h - Rated head: 3.28 m - Max. head: 6 m - Power input (P1): 45 W - Energy efficiency index (EEI): 0.20 - Enclosure class: IPX4D - Insulation class: F - Motor protection: Electronic - Max. operating pressure: 10 bar - Pipe connection: G 1 1/2" - Port-to-port length: 180 mm - Liquid temperature: 2 – 95 °C - Ambient temperature: 0 – 55 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 2.06 kg - Approvals: VDE, CE, EAC, SEPRO
