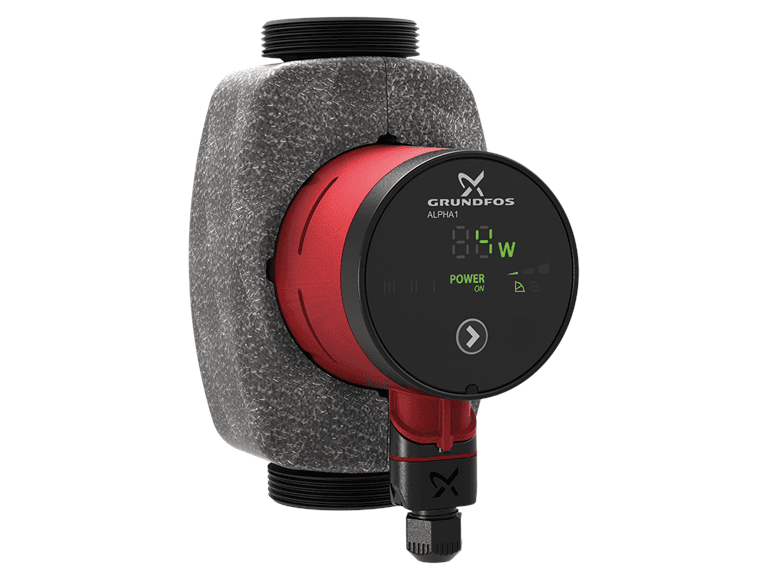

Grundfos ALPHA1 32-80 180 Variable Speed Circulator Pump (1x230V)
Grundfos ALPHA1 32-80 180: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 99199597
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos ALPHA1 32-80 180 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: ALPHA1 32-80 180 - Grundfos product no.: 99199597 - Power supply: 1x230V, single-phase - Rated flow: 2.14 m³/h - Rated head: 4.76 m - Max. head: 8 m - Power input (P1): 50 W - Energy efficiency index (EEI): 0.20 - Enclosure class: IPX4D - Insulation class: F - Motor protection: Electronic - Max. operating pressure: 10 bar - Pipe connection: G 2" - Liquid temperature: 2 – 110 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 2.21 kg - Approvals: CE, VDE
