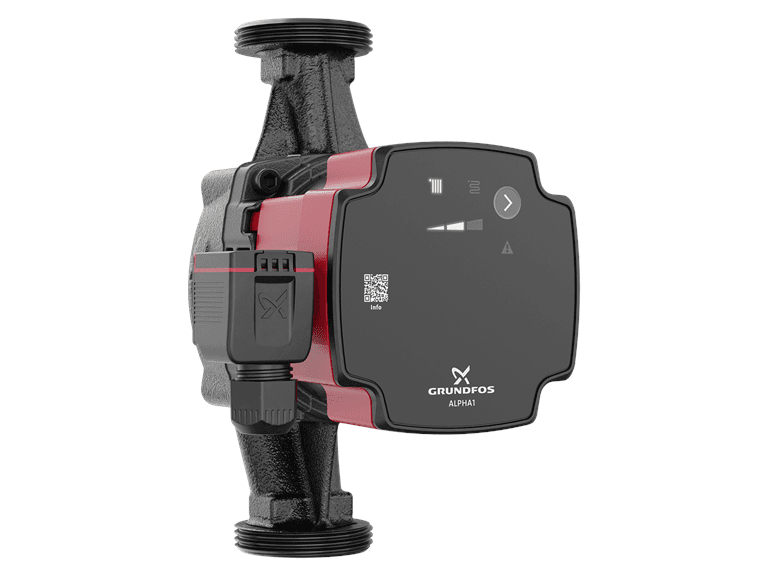

Grundfos ALPHA1 25-60 180 Variable Speed Circulator Pump (1x220-240V)
Grundfos ALPHA1 25-60 180: variable speed, high-efficiency circulator pump for heating and cooling systems.
SKU: 93074163
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description

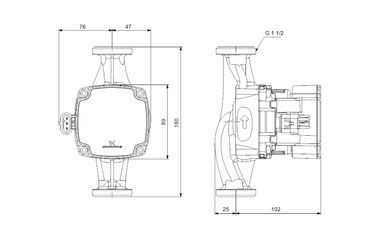

Grundfos ALPHA1 25-60 180 is a variable speed, high-efficiency wet-rotor circulator pump for heating and cooling systems. Technical data - Model: ALPHA1 25-60 180 - Grundfos product no.: 93074163 - Power supply: 1x220-240V, single-phase - Rated flow: 2.28 m³/h - Rated head: 3.06 m - Max. head: 6 m - Power input (P1): 45 W - Max. current: 0.45 A - Energy efficiency index (EEI): 0.20 - Enclosure class: IP44 - Insulation class: F - Motor protection: Electronic - Max. operating pressure: 10 bar - Pipe connection: G 1 1/2" - Port-to-port length: 180 mm - Liquid temperature: -10 – 110 °C - Ambient temperature: 0 – 55 °C - Pump housing: Cast iron - Impeller: Composite - Net weight: 1.97 kg - Approvals: CE, VDE, EAC, SEPRO, AAA
