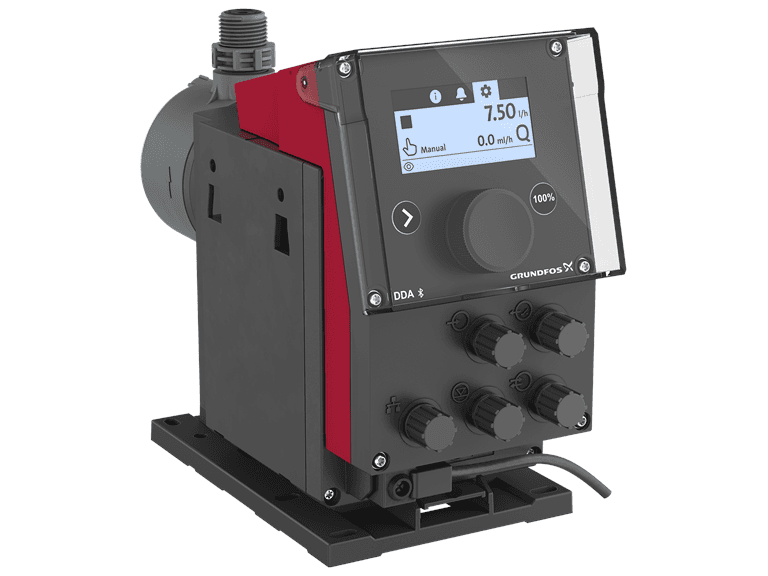

Grundfos DDA 7.5-16 FCM-C-PP/E/C-F-31I001FG Digital Dosing Pump
Grundfos DDA 7.5-16 FCM-C-PP/E/C-F-31I001FG: Grundfos SMART Digital dosing pump for chemical dosing.
SKU: 93016980
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos DDA 7.5-16 FCM-C-PP/E/C-F-31I001FG is a SMART Digital dosing pump with stepper motor for precise dosing of chemicals in water treatment, swimming pools and industrial applications. Technical data - Model: DDA 7.5-16 FCM-C-PP/E/C-F-31I001FG - Grundfos product no.: 93016980 - Power supply: 1x100-240V, single-phase - Max. flow: 7.5 l/h - Min. flow: 2.5 ml/h - Turn-down ratio: 1:3000 - Max. back pressure: 16 bar - Max. viscosity: 50 mPas - Max. suction lift (operating): 6 m - Repeatability: ±1% - Dosing head: PP - Valve ball: Ceramic - Seal: EPDM - Hose connection: 4/6 mm - Control variant: FCM-C – Flow control (FCM) with communication - Control inputs: analog 0/4-20 mA, pulse, level, external stop - Outputs: analog 0/4-20 mA, 2 relays - Communication: Fieldbus ready - Power input (P1): 24 W - Enclosure class: IP65 - Liquid temperature: 0 – 45 °C - Ambient temperature: 0 – 45 °C - Cable length: 1.5 m - Net weight: 2 kg - Approvals: CE, CSA-US, RCM, UKCA
