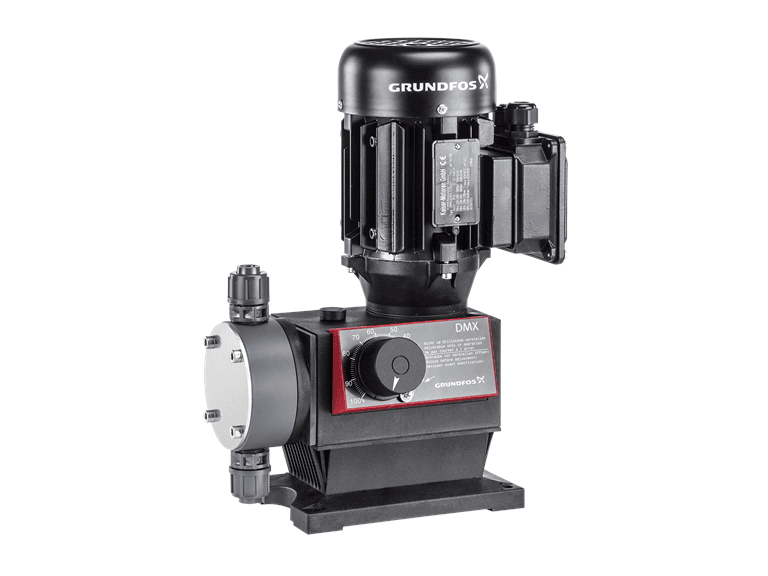

Grundfos DMX 50-10 B-PV/T/C-X-E1U2U2XEMNG Dosing Pump
Grundfos DMX 50-10 B-PV/T/C-X-E1U2U2XEMNG: diaphragm dosing pump for chemical dosing.
SKU: 99592012
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos DMX 50-10 B-PV/T/C-X-E1U2U2XEMNG is a diaphragm dosing pump for dosing chemicals in water treatment and industrial applications. Technical data - Model: DMX 50-10 B-PV/T/C-X-E1U2U2XEMNG - Grundfos product no.: 99592012 - Power supply: 3x230/400V, three-phase - Max. flow: 50 l/h - Max. back pressure: 10 bar - Max. viscosity: 100 mPas - Dosing head: PVDF - Valve ball: Ceramic - Seal: PTFE - Hose connection: 4/6, 6/9, 6/12, 9/12 mm - Power input (P1): 0.09 kW - Enclosure class: IP65 - Liquid temperature: -10 – 60 °C - Net weight: 7 kg - Approvals: CE, EAC, CN RoHS
