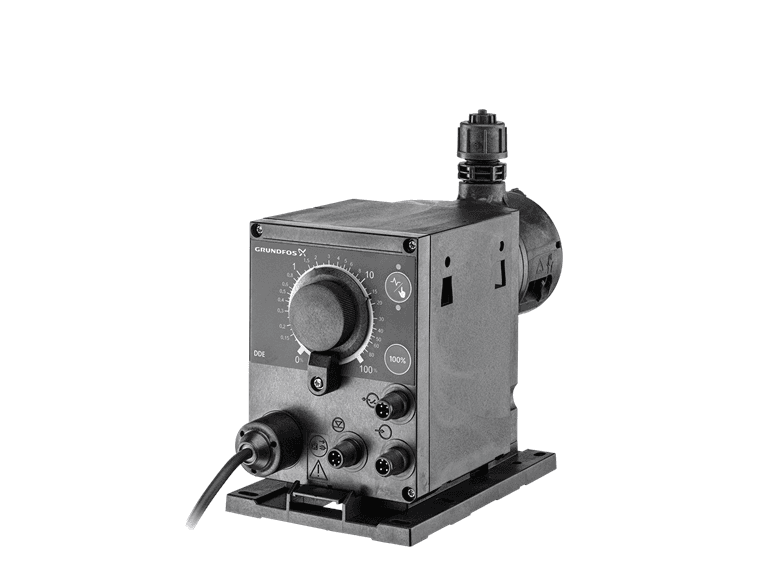

Grundfos DDE 6-10 B-PV/T/C-X-31I001FG Digital Dosing Pump
Grundfos DDE 6-10 B-PV/T/C-X-31I001FG: Grundfos SMART Digital dosing pump for chemical dosing.
SKU: 97720944
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos DDE 6-10 B-PV/T/C-X-31I001FG is a SMART Digital dosing pump with stepper motor for precise dosing of chemicals in water treatment, swimming pools and industrial applications. Technical data - Model: DDE 6-10 B-PV/T/C-X-31I001FG - Grundfos product no.: 97720944 - Power supply: 1x100-240V, single-phase - Max. flow: 6 l/h - Min. flow: 6.0 ml/h - Turn-down ratio: 1:1000 - Max. back pressure: 10 bar - Max. viscosity: 50 mPas - Max. suction lift (operating): 6 m - Repeatability: ±5% - Dosing head: PVDF - Seal: PTFE - Hose connection: 4/6 mm - Control variant: B – Manual (basic) - Power input (P1): 19 W - Enclosure class: IP65 - Liquid temperature: 0 – 45 °C - Ambient temperature: 0 – 45 °C - Cable length: 1.5 m - Net weight: 2.11 kg - Approvals: CE, CSA-US, NSF61, EAC, RCM, UKCA
