Grundfos DMX 115-3 B-PV/T/C-X-E1U3U3XEMNG Dosing Pump

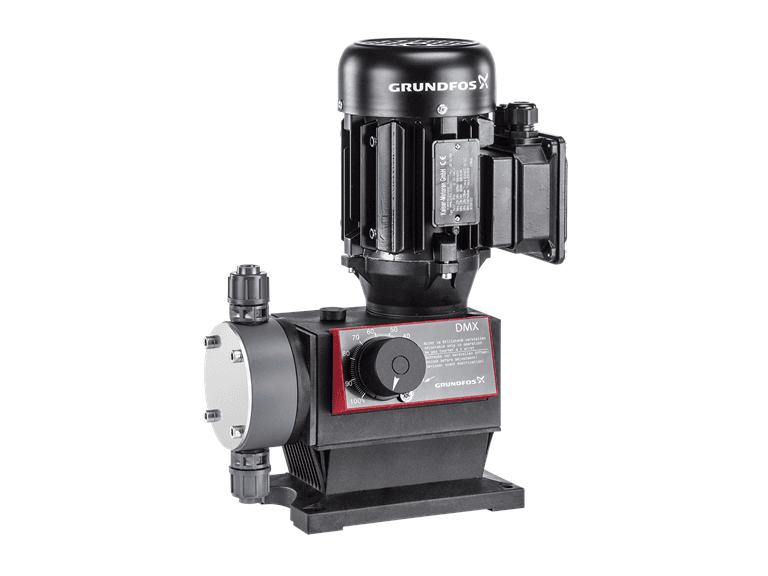

Grundfos DMX 115-3 B-PV/T/C-X-E1U3U3XEMNG: diaphragm dosing pump for chemical dosing.
SKU: 99592027
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos DMX 115-3 B-PV/T/C-X-E1U3U3XEMNG is a diaphragm dosing pump for dosing chemicals in water treatment and industrial applications. Technical data - Model: DMX 115-3 B-PV/T/C-X-E1U3U3XEMNG - Grundfos product no.: 99592027 - Power supply: 3x230/400V, three-phase - Max. flow: 115 l/h - Max. back pressure: 3 bar - Max. viscosity: 100 mPas - Dosing head: PVDF - Valve ball: Ceramic - Seal: PTFE - Hose connection: 19/27, 20/25 mm - Power input (P1): 0.09 kW - Enclosure class: IP65 - Liquid temperature: -10 – 60 °C - Net weight: 11 kg - Approvals: CE, EAC, CN RoHS
