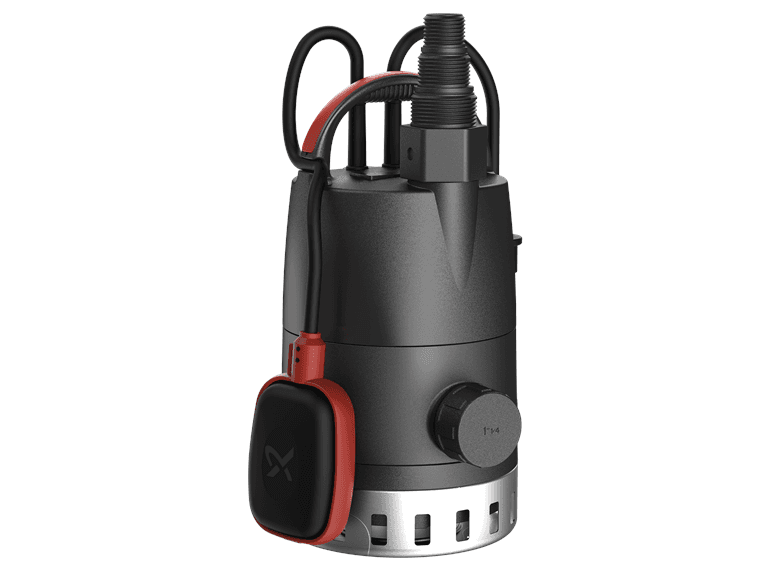

Grundfos Unilift CC9-A1 Submersible Drainage Pump
Grundfos Unilift CC9-A1: submersible drainage pump for clean and slightly contaminated water.
SKU: 96280970
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos Unilift CC9-A1 is a submersible drainage pump for draining clean and slightly contaminated water from basements, pits and flooded areas. Technical data - Model: Unilift CC9-A1 - Grundfos product no.: 96280970 - Power supply: 1x220-240V, single-phase - Rated flow: 6.77 m³/h (1.88 l/s) - Max. flow: 14 m³/h (3.89 l/s) - Rated head: 6.56 m - Max. head: 9 m - Max. particle size: 10 mm - Motor power (P2): 0.465 kW - Power input (P1): 780 W - Rated current: 3.5 A - Rated speed: 2850 rpm - Enclosure class: IP68 - Insulation class: B - Motor protection: Yes - Float switch: Yes (automatic) - Pipe connection: R 1 1/4" - Max. installation depth: 7 m - Cable length: 10 m - Liquid temperature: 0 – 40 °C - Ambient temperature: 0 – 40 °C - Pump housing: Polypropylene - Impeller: Composite - Net weight: 6.79 kg - Approvals: CE, LGA, VDE, UKCA, SEPRO
