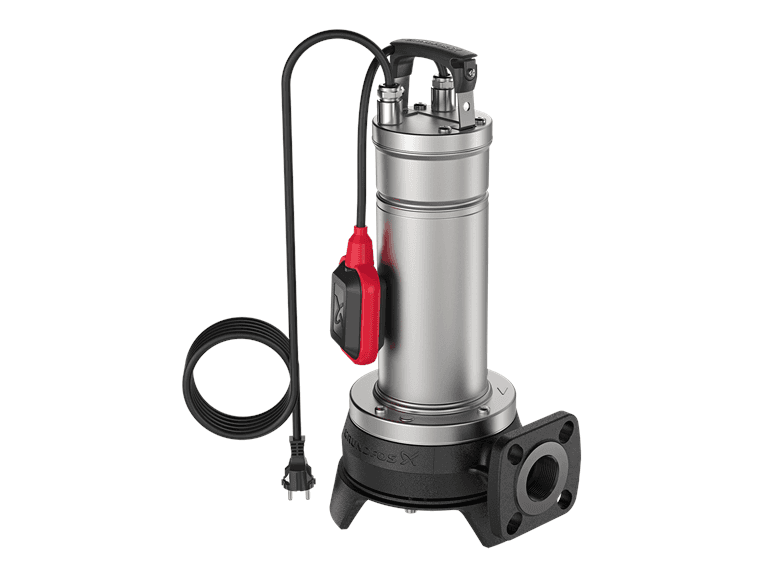

Grundfos UNILIFT APG.40.10.A1 Grinder Wastewater Pump (1x230V)
Grundfos UNILIFT APG.40.10.A1: submersible wastewater pump with grinder system.
SKU: 92611467
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos UNILIFT APG.40.10.A1 is a submersible pump with a grinder system that shreds solids in wastewater so it can be pumped through small-diameter pressure pipes. Technical data - Model: UNILIFT APG.40.10.A1 - Grundfos product no.: 92611467 - Power supply: 1x230V, single-phase - Rated flow: 7.2 m³/h (2 l/s) - Rated head: 15 m - Max. particle size: 40 mm - Impeller type: Grinder - Motor power (P2): 1 kW - Power input (P1): 1.3 kW - Rated current: 5.8 A - Rated speed: 2850 rpm - Enclosure class: IP68 - Insulation class: F - Float switch: Yes - Max. installation depth: 7 m - Cable length: 10 m - Liquid temperature: 0 – 70 °C - Ambient temperature: 0 – 40 °C - Pump housing: Cast iron - Impeller: Composite (AISI 304) - Net weight: 23.2 kg - Approvals: CE, EAC, LGA, UKCA, SEPRO
