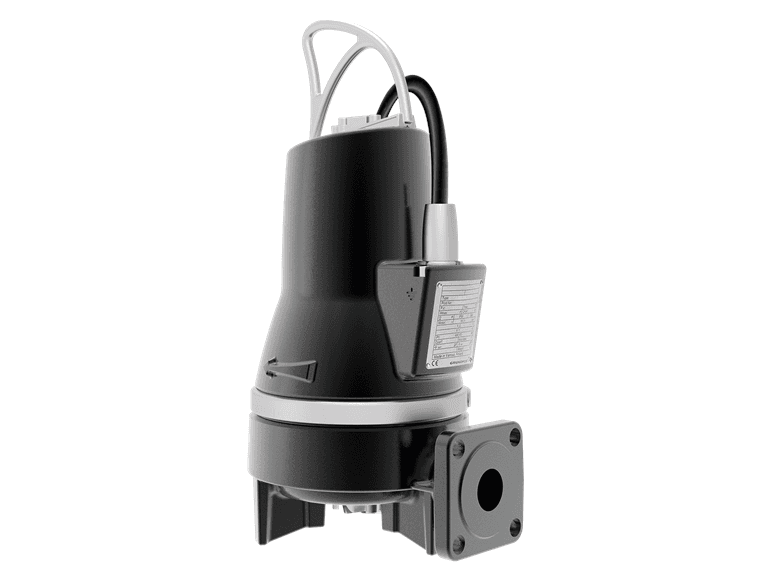

Grundfos SEG.50.40.2.50B Grinder Wastewater Pump
Grundfos SEG.50.40.2.50B: submersible wastewater pump with grinder system.
SKU: 99274388
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos SEG.50.40.2.50B is a submersible pump with a grinder system that shreds solids in wastewater so it can be pumped through small-diameter pressure pipes. Technical data - Model: SEG.50.40.2.50B - Grundfos product no.: 99274388 - Power supply: 3x400V, three-phase - Max. flow: 37.08 m³/h (10.3 l/s) - Max. head: 26.8 m - Impeller type: Grinder - Motor power (P2): 4 kW - Power input (P1): 4.9 kW - Rated current: 8–3.5 A - Rated speed: 2830 rpm - Enclosure class: IP68 - Insulation class: F - Motor protection: Thermal switch (PTO) - Max. operating pressure: 6 bar - Max. installation depth: 7 m - Cable length: 10 m - Liquid temperature: 0 – 40 °C - Max. ambient temperature: 40 °C - Pump housing: Cast iron - Impeller: Cast iron - Net weight: 69.3 kg - Approvals: PA-I
