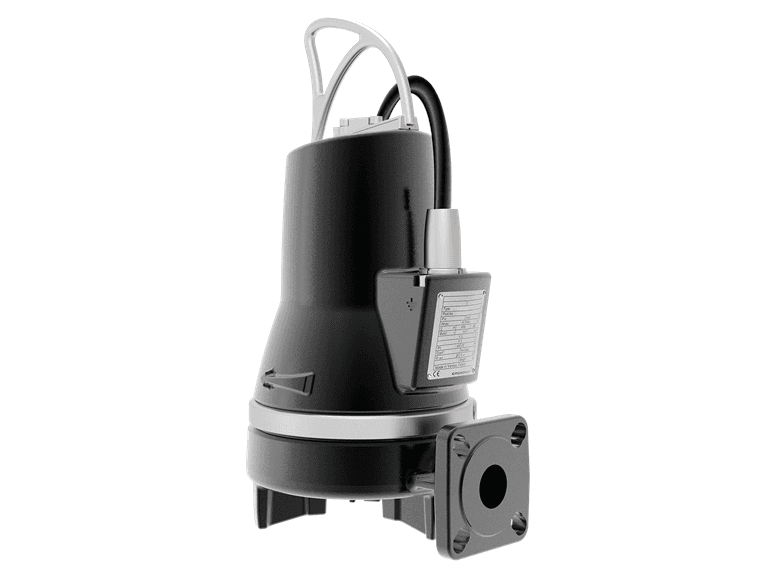

Grundfos SEG.40.26.2.50B Grinder Wastewater Pump
Grundfos SEG.40.26.2.50B: submersible wastewater pump with grinder system.
SKU: 96075913
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos SEG.40.26.2.50B is a submersible pump with a grinder system that shreds solids in wastewater so it can be pumped through small-diameter pressure pipes. Technical data - Model: SEG.40.26.2.50B - Grundfos product no.: 96075913 - Power supply: 3x400V, three-phase - Max. flow: 16.99 m³/h (4.72 l/s) - Max. head: 33.8 m - Impeller type: Grinder - Motor power (P2): 2.6 kW - Power input (P1): 3.2 kW - Rated current: 6–2.8 A - Rated speed: 2870 rpm - Enclosure class: IP68 - Insulation class: F - Motor protection: Thermal switch (PTO) - Max. operating pressure: 6 bar - Max. installation depth: 7 m - Cable length: 10 m - Liquid temperature: 0 – 40 °C - Max. ambient temperature: 40 °C - Pump housing: Cast iron - Impeller: Cast iron - Net weight: 60.9 kg - Approvals: PA-I
