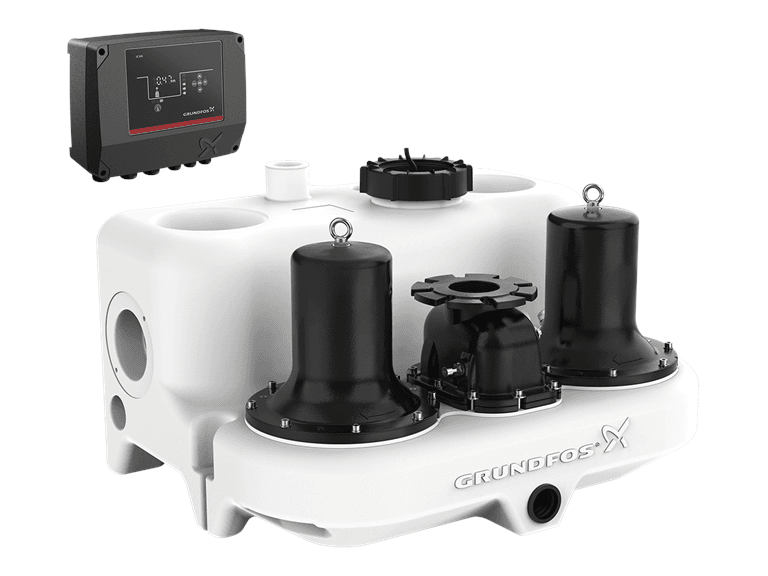

Grundfos Multilift MD.15.3.4 Wastewater Lifting Station (3x400V)
Grundfos Multilift MD.15.3.4: wastewater lifting station.
SKU: 97901087
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos Multilift MD.15.3.4 is a wastewater lifting station consisting of a tank, pumps and controller for draining wastewater from areas below sewer level. Technical data - Model: MD.15.3.4 - Grundfos product no.: 97901087 - Power supply: 3x400V, three-phase - Rated flow: 19.8 m³/h (5.5 l/s) - Max. flow: 50.04 m³/h (13.9 l/s) - Rated head: 7.2 m - Max. head: 8 m - Max. particle size: 50 mm - Impeller type: Vortex - Motor power (P2): 1.7 kW - Power input (P1): 2.1 kW - Rated current: 4 A - Enclosure class: IP68 - Insulation class: F - Motor protection: Bimetal thermal switch - Cable length: 1.5 m - Liquid temperature: 0 – 40 °C - Ambient temperature: 0 – 40 °C - Impeller: LURANYL - Net weight: 113 kg - Approvals: CE, EAC, MORO, UKCA, SEPRO
