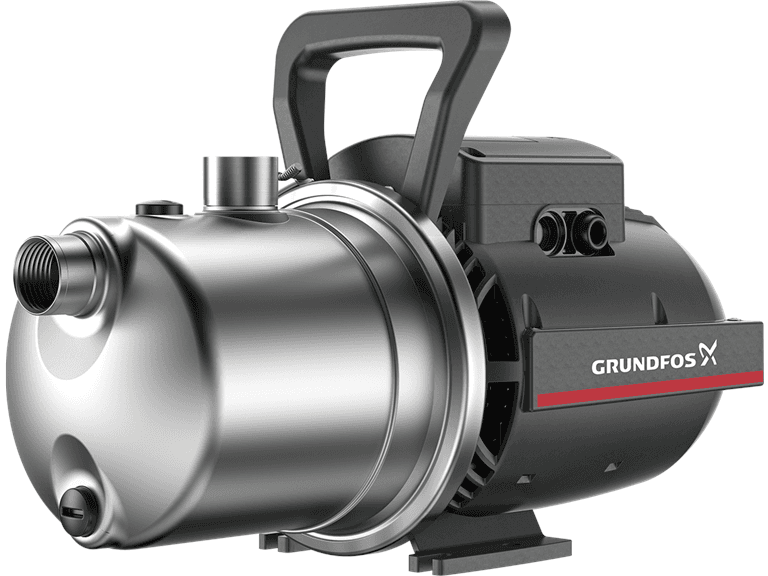

Grundfos JP 4-54 Self-priming Jet Pump (1x230V)
Grundfos JP 4-54: self-priming jet pump for drawing water from wells and tanks.
SKU: 99458768
VAT incl.(at the CBRT effective selling rate of 20.10.2026)
Free Shipping
Specifications
Product Description
Grundfos JP 4-54 is a self-priming jet pump for drawing water from shallow wells, tanks and similar sources. Technical data - Model: JP 4-54 - Grundfos product no.: 99458768 - Power supply: 1x230V, single-phase - Rated flow: 4 m³/h - Rated head: 46 m - Max. head: 50 m - Motor power (P2): 0.75 kW - Power input (P1): 1020 W - Rated current: 4.5 A - Rated speed: 2840 rpm - Enclosure class: IP44 - Insulation class: F - Max. operating pressure: 6 bar - Max. inlet pressure: 1 bar - Pipe connection: G1 - Cable length: 1.5 m - Liquid temperature: 0 – 40 °C - Ambient temperature: 0 – 40 °C - Pump housing: Stainless steel (AISI 304) - Impeller: Composite - Shaft seal: BBVP - Net weight: 10 kg - Approvals: CE, EAC
